Hi-Lok & Jo Bolt - Installation & Removal Kits

KTC826 Hi-Lok® Pneumatic Installation & Removal Kit

The KTC826 Hi-Lok® Pneumatic Installation and Removal 17 piece kit includes everything you need to easily install and remove -5 (5/32”), -6 (3/16”), -8 (1/4”), & -10 (5/16”) Hi-Lok style fasteners.

Kit Includes:
• AR250 1/4” square drive AIR ratchet, with through hole for hex keys -   OMSK3581-5, OM3581-8, OM3581-10.
• 4 ea. Hi-Lok® collar removal sockets for dash 5, 6, 8,& 10 size collars.
• 9 ea. Anti FOD sockets with set screws (5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16).
• 3 ea Handi-Hex keys with replaceable blades for all 5/32”, 3/16”, 1/4” (-5, -6, -8) Hi-Lok pins.
• Rugged case.



$795.00


KTC825 Hi-Lok® Hand Installation & Removal Kit


The KTC825 Hi-Lok® Hand Installation and Removal 17 piece kit includes everything you need to easily install and remove -5 (5/32”), -6 (3/16”), -8 (1/4”) & -10 (5/16”) Hi-Lok® style fasteners.

Kit Includes:
• ATHR250 1/4” square drive hand ratchet, 72 teeth, (5 degree arch
  between clicks) with through hole - OMSK3581-5, OM3581-8, OM3581-10.
• 4 ea. Hi-Lok collar removal sockets for dash 5,6,8,& 10 size collars.
• 9 ea. Anti FOD sockets with set screws (5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8 & 7/16).
• 3 ea. Handi-Hex keys with replaceable blades for all 5/32”, 3/16”, 1/4” (-5, -6, -8) Hi-Lok pins.
• Rugged case.





$395.00



KTC675K Hi-Lok® Installation Tool Kit


The KTC675K HI-Lok® Installation Tool 13 piece Kit is designed to easily install frangible collar (Hi-Lok®) type fasteners in the most unusual and awkward of situations. Also known as the Liberator kit.

Kit Includes:
• 2 ea. roller clutch ratchet heads with a 80 in lb torque rating.
• 2 ea. 1/4” drive studs for use with any 1/4” drive sockets
• A large 8 piece selection of straight and 90 degree handles that can be assembled in an unlimited number of configurations.
• Rugged Case.




$185.00

KTC676K Jo-Bolt Installation Kit


The KTC676K Jo-Bolt® Installation Kit is a compact 13 piece kit that contains everything required to install 5/32”, 3/16” and 1/4” Jo-Bolts® in either flush or protruding head styles. This complete kit contains a ratchet, grip gauge and all of the drivers and socket heads needed. Kit is packaged in a rugged plastic case.




$795.00


KTC900 Hi-Lok® Collar Removal Sockets
These sockets are designed to remove aluminum Hi-Lok® collars only.  "Bites" the aluminum collar for easy removal.  Use with a 1/4" drive ratchet or with a wrench.  Made in USA.

KTC900 Kit Includes: KTC900-5, KTC900-6, KTC900-8 & KTC900-10


Model # Size Price
KTC900-5 5/32 30.00
KTC900-6 3/16 30.00
KTC900-8 1/4 30.00
KTC600-10 5/16 30.00
KTC600-12 3/8 30.00
KTC900 (Kit)   110.00





KTC901 Hi-Lok® Collar Removal Sockets

Used to remove aluminum Hi-Lok® collars only.  "Bites" the aluminum collar for easy removal.  Designed with a new hex end for use with an open end wrench to reach those tight and confined areas.  The O-ring on the end will also hold a 6 or 12 point socket.

KTC901 Kit Includes: KTC901-5, KTC901-6, KTC901-8 & KTC901-10


Model # Size Price
KTC901-5 5/32 35.00
KTC901-6 3/16 35.00
KTC901-8 1/4 35.00
KTC901-10 5/16 35.00
KTC901 (Kit)   120.00

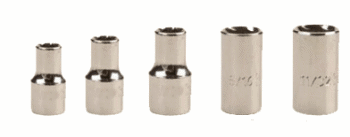

KTC902 Hi-Lok® Installation Sockets

These 1/4" drive sockets, used to install Hi-Lok® fasteners, attach to any Hi-Lok® ratchet or roller ratchet with a special set screw located on the side of the socket.


Model # Size Price
KTC902-7/32 7/32 13.00
KTC902-8 1/4 13.00
KTC902-9/32 9/32 13.00
KTC902-10 5/16 13.00
KTC902-11/32 11/32 13.00
