Riveting - Hand - GBP/Huck/Cherry |
|
|
|
| |

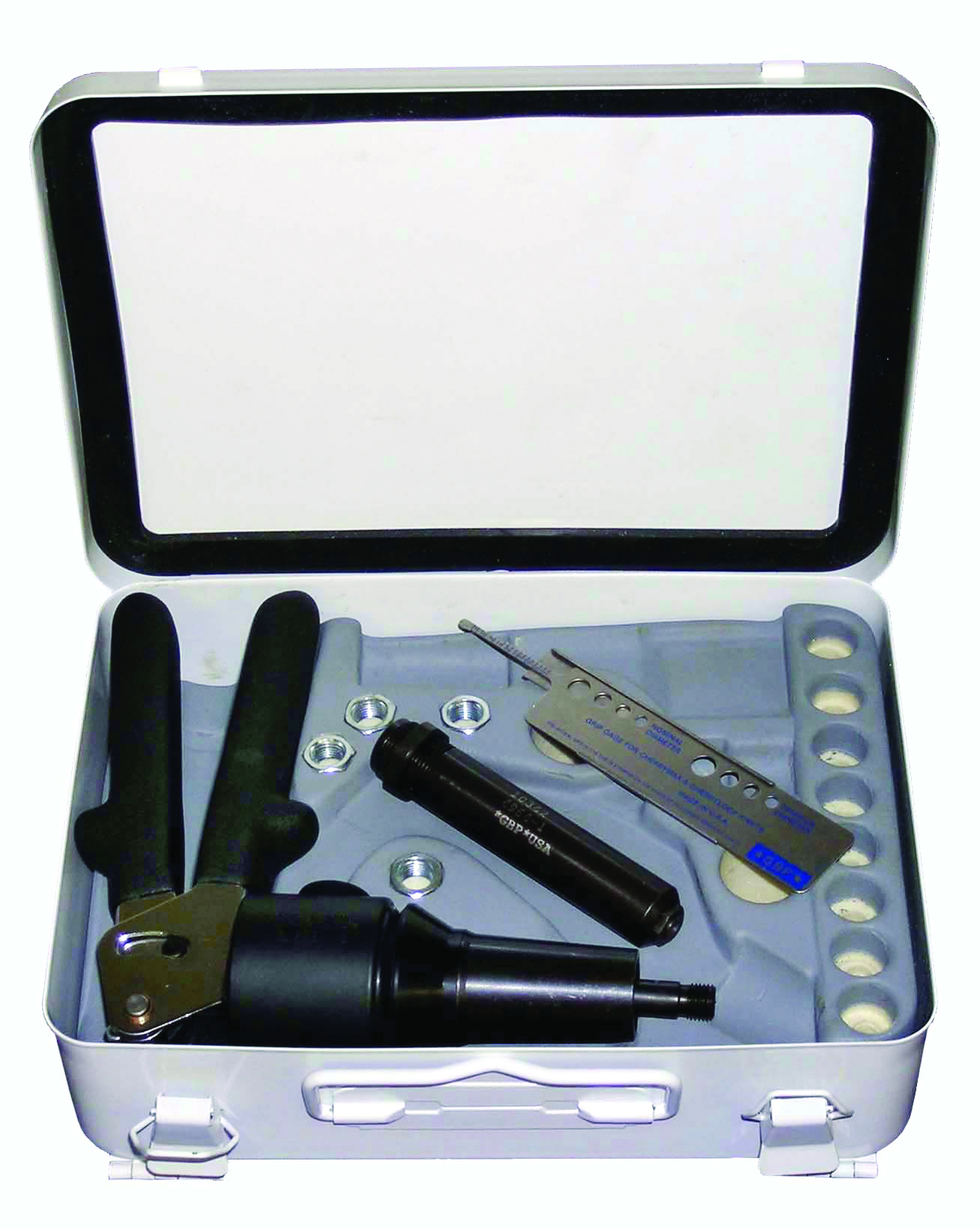

Easily converts from riveter to nut setter to suit the
task at hand. With a pulling capacity of nearly 4,000
lbs, this tool will easily pull 1/8", 5/32", and 3/16"
CherryMAX® rivets as well as rivnuts in 6-32, 8-32,
10-32, 1/4-28. The handy storage case protects the tool
and keeps all the nosepieces and pull up studs separated
and convenient. Requires no air or electric power to
operate.
|
|
 |
| |
| |
|
|
| |
|
| |
Great kit for pulling CherryMAX® and Huck-Clinch®, pop,
monobolt and most commercial rivets, lockbolts, nut
plate rivets as well as most rivnuts including B.F.
Goodrich, Rexnord, Tridir, Shurlock, Avdel and Townsend
Perma-pulls. The kit contains GBP 150 rivet Tool, 3/32
nut plate nosepiece, 1/8", 5/32" & 3/16" CherryMAX®,
1/4" nosepiece, 6-32, 8-32, 10-24, 10-32, 1/4-20,
1/4-28, 5/16-18, 3/8-16 pull up studs and driving
anvils. #456219 adapter assembly for Powermax pulling
heads, a weather tight metal carrying case and
instructions. Totally self-contained and requires no
external power source.
|
|
 |
| |
| |
|
|
| |
|
| GB100-Mil-2A
Riveter & Rivetnut Puller Kit |
| |
This kit contains all of the items included in the GBP
100-MIL-1A kit, plus the following - 456 MAX-749-35,
456Max-54, and 456MAX-763B-43 nose assemblies.
|
|
 |
| |
| |
|
|
| |
| GB456ARK Hand
Hydraulic Riveter |
| |
The GB456ARK hand hydraulic riveter was designed to
efficiently install all 1/8", 5/32", 3/16" and 1/4"
CherryMAX®, Allmax® and Huckmax® rivets. It has a .565"
stroke and a rated pulling force of 3,500 lbs. A pulling
head is not included with this tool and must be ordered
separately.
• Straight head - 456 MAX-749-43
• Right Angle head - 456MAX-753-54
• Offset head - 456MAX-763-35
Will pull CherryMAX®, Allfast®, Huckmax® MIL-R-7885,
NAS9301-9312, BACR15FR/FR and BACR15GJ/GK. Will also
pull, with correct head and adapter, MS20600, MS/9SP/PT,
Nut Plate, BACR15CC/CF/DR, Olympic Lok, Bulb Lok
NAS1398A and NAS1399A, Cherrylock® A, NAS1919S & U, NAS
1921S & NAS1921
|
|
 |
| |
|
|
| |
|
GB ARK6-2 Hand Riveter Kit |
| |
Kit comes with GBP150CMR Hand riveter, 456max-753a-54
pulling head, 456max-704-43OS pulling head, adapter and
grip gage in a metal carrying case. Kit is comparable to
the G750ACMR riveting kit made by Cherry®. Tool is
versatile tool, light weight and ergonomic in design.
Very reliable, economical compared to the competition.
Pulling Force of 3,500 lbs, Stroke .565. Tool less
pulling head weighs 20 oz. Kit is used in pulling 1/8”
through 1/4” Cherry® Max and Hi-Clinch rivets. Total
weight of kit is 6 lbs.
|
|
 |
| |
| |
|
|
| |
| Cherry® G800CMR
Ergonomic Hand Riveter Kit |
|
This is the latest kit in a Fabulous Cherry® Line. Tool
is capable of installing a wide range of blind type
fasteners. The all metal design makes this compact tool
ideal for use in repair facilities and field repair.
Item has exceptional power providing up to 6,000 lbs of
force. Features include ergonomic design, lightweight,
internal shock absorber and versatile mounting system
(same as G704B) compatible with standard pulling heads
H781-456 & H753A-456. Includes G800 hand riveter
equipped with H800 pulling head, H782 offset pulling
head, H753a-456 pulling head, 886-003 and 782-5bb nose
pieces, fastener reference guide and grip gauge.
Specification sheets and manual in a molded plastic
carry case.
|
|
 |
| |
| |
|
|
|
|
The kit contains nose tips to install 1/8" thru 1/4" pop
rivets in all materials, 1/8" trim and 1/4" T-rivets.
Included are: hand hydraulic riveter, chuck jaw set,
spring, 1/4" T-nose tip, 1/8" trim nose tip, 5/32" -
3/16" pop nose tip, 1/4" pop nose tip and a molded case.
No external power source is required. It is suitable for
most close quarter applications.
|
|
 |
| |
| |
|
|
|
 |
|
