Gage Bilt - Huck - Cherry Tool Kits |
|
|
| GB704RK-1 Blind
Rivet Installation Tool Kit |
| |
The GB704RK-1 is a complete tool kit for installing
Huck® & Cherry® blind rivets per NAS9301 - NAS9312,
M7885, BACR15FP/FR and BACR15GF/GK. It contains a
straight, offset and right angle nose to install -4, -5,
and -6 rivets, bleeder bottle, pintail catcher bag and
grip selector gauge. All packaged in an easy access
storage case with manuals and data sheets.
|
|
 |
|
| |
| GB704RK Blind
Rivet Installation Tool Kit |
| |
The GB704RK is a complete tool kit for installing
Huck® & Cherry® blind rivets per NAS9301 - NAS9312,
M7885, BACR15FP/FR and BACR15GF/GK. It contains a
straight nose to install -4, -5,
and -6 rivets, bleeder bottle, pintail catcher bag and
grip selector gauge. All packaged in an easy access
storage case with manuals and data sheets.
|
|
|
|
| |
|
|
| |
|
| GB745 Power
Installation Took Kit NAS568-1 NAS Tension & NAS
Shearlock Bolts |
| |
|
This installation kit is for 5/32" thru 1/4" NAS Tension
& NAS Shearlock bolts. It comes with a set of straight
noses for -5, -6, -8 diameters as well as offset noses,
bleeder bottle, grip scale and pintail catcher bag.
(Notify us with the fastener you are working with so the
proper nosepieces can be supplied). All this is packaged
in a safe and convenient carrying case. |
|
|
| |
|
Please Call For Pricing |
|
|
| |
|
| GB784RK Blind
Rivet Installation Tool Kit |
| |
The GB784RK offers a complete tool kit for installing
2000 series CHERRYLOCK® rivets conforming to NAS1400 &
NAS1740. The GBP784RK, contains a tool, straight noses
to install -4, –5 and –6 diameters, bleeder bottle and a
stroke setting gauge. All these items are stored in an
easy access carrying case with a manual and data sheet.
The basic kit, GBP784RK-1 contains a GBP784A tool,
bleeder bottle and a stroke setting gauge. |
|
 |
| |
| |
|
Please Call For
Pricing |
| |
| GB713BBK-1 Blind
Rivet Installation Tool Kit |
| |
Designed to pull Huck® and Cherry® blind bolts per
MS21140 & MS21141 U & S and MS90353 and MS90354 U & S.
The kit includes the GBP722 riveter and straight noses
to install -5, -6, and -8 diameters. It also includes
right angle heads for -5 and -6 offset noses for -5, -6,
and -8, an adapter, bleeder bottle, pintail catcher bag
and a grip gauge. All the items are stored in a
convenient storage case with manuals and data sheets.
|
|
 |
| |
|
|
|
Please Call For
Pricing |
|
|
|
GB722TCK Blind Rivet Installation Tool Kit |
| |
This tool was designed especially for the truck and
trailer OEMs pulling both blind rivets and lockbolts.
The kit includes a nose and 2 tips for installing 3/16"
and 1/4" structural blind rivets (in any material) and a
3/16" and 1/4" magna-grip nose for the hood and cab. It
also includes a catcher bag for the pintails, a 3/16"
nose for the stainless steel grill bolt and a heavy duty
metal tool case.
|
|
 |
| |
| |
| |
| GB731 Power
Installation Tool Kit NAS56-1 NAS Tension & NAS
Shearlock Bolts |
|
|
Assembled to pull 5/32" to 3/16" NAS Tension and NAS
Shearlock bolts. The kit comes with a set of straight
pulling heads, set of offset heads, an adapter, bleeder
bottle, grip scale and pintail catcher bag. They are all
packaged in a handy carrying case with manuals and data
sheets. |
|
 |
| |
|
|
Please Call For
Pricing |
|
|

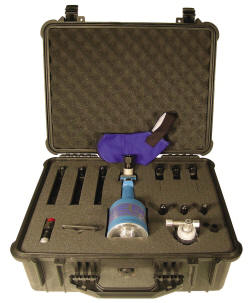

| GB751BRK-1 Blind
Rivet Power Installation Tool Kit |
|
|
This is a complete tool kit for installing blind rivets
per NAS1919 S & U and NAS1921 S & U. The kit includes
the GBP751 Riveter, straight noses to install -4, -5,
and -6 diameters. It also contains right angle and
offset noses, adapter, bleeder bottle, pintail catcher
bag and grip gauge. All stored in a handy carrying case.
Complete with manuals and data sheets. |
|
|
| |
| |
|
Please Call For
Pricing |
|
 |
|
